7.5M Antenna
The 7.5 Mtr Earth Station Antenna is designed for High Structural Stability & POINTING and TRACKING accuracies. The Antenna can be used as Rx and Tx applications in C / Ext - C / Ku Bands.

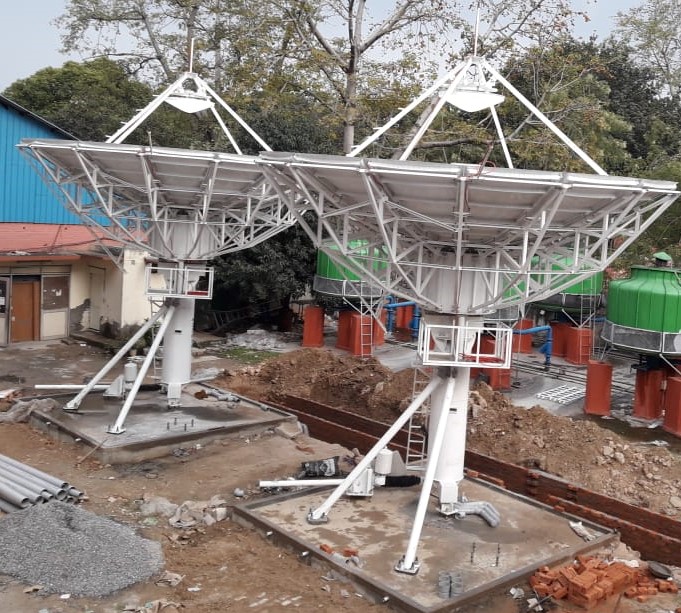

The Antenna has an Elevation over Azimuty type of mount, to allow for easy pointing to any visible satellites within the Geo-Stationary arc. The KingPost Mount Antenna has 110° continuous coverage in Azimuth, extendable to 180° in 2 positions. The full motion Mount has ±330? rotation in Azimuth. The Antenna withstands wind loads 100Kmph survival.

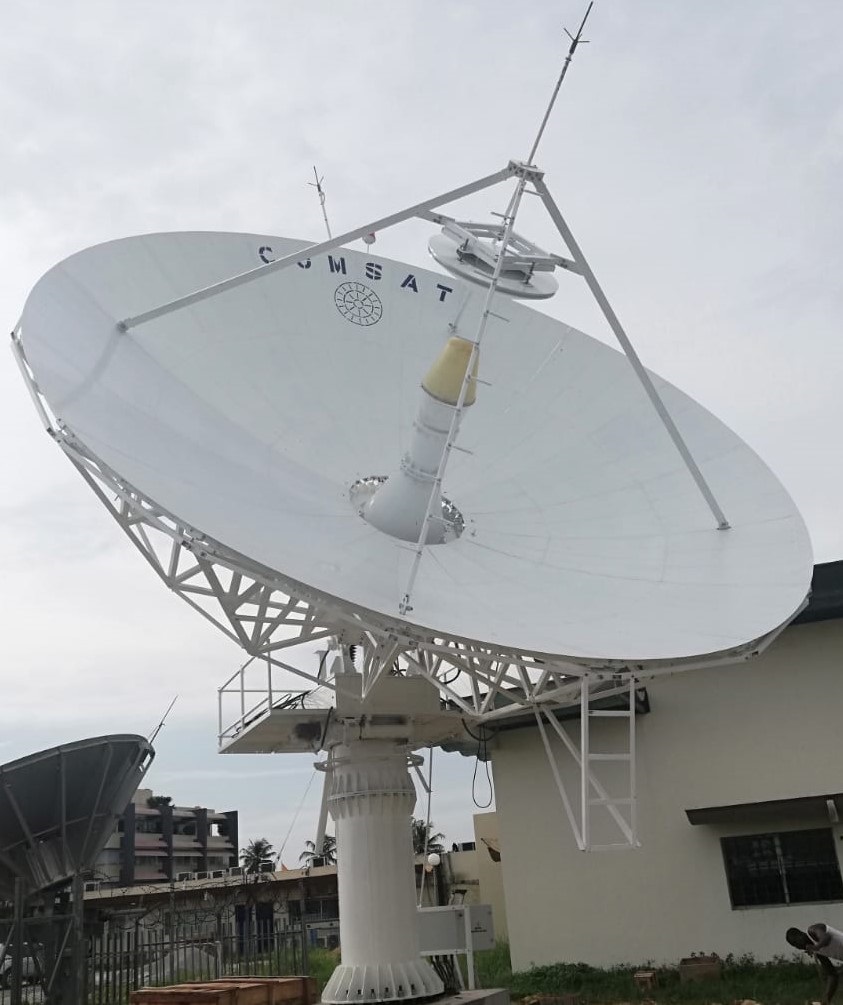

The Antenna reflector is of dual shaped cassegrain configuration emplaining corrugated conicalfeed horn and Sub-reflector, and meets the gain and side lobe specifications of International Standards ITU-RS-580-6.
The reflector is made up of 16 no's of high strength doubly curved stretch formed aluminium panels placed on the 16 radial trusses emenating from a center hub constitutes the reflector, The hub can house receive / Transmit electronics.
Options :
- Feed - 2 Port / 4 Port Linear / Circular Feed in C / Ext - C / Ku Band. Composite C / Ku Band Rx only.
- e-iceing for Reflector & Feed.
- Step Track Mechanism using Antenna Control System & Beacon Receiver and Motor Controller.
- Polarisation Controller incorporated in ACU.
- Turnkey Installations, Commissioning including Civil Foundation.
